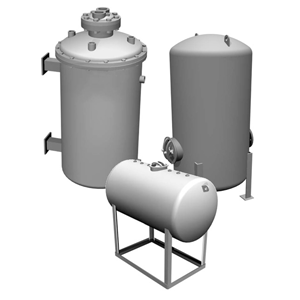

Steel Tanks

Sizing CEMLINE Steel Tanks are manufactured in a wide range of sizes. Tank diameter is the outside diameter and length refers to the overall tank length.

Material CEMLINE tanks are normally constructed of pressure vessel quality carbon steel. Stainless Steel in grades 304 or 316 and 90:10 CuproNickel can be furnished. Consult factory for other materials.

Exterior CEMLINE Steel Tanks are normally furnished with factory primed exterior. Special paints and coatings are available upon request.

Paint Coatings CEMLINE tanks can be furnished with interior or exterior coatings to meet customer specifications.

Construction CEMLINE Steel Tanks are manufactured in strict accordance with ASME code requirements and National Board Registration. Non-Code tanks are also available.

Working Pressure CEMLINE Steel Tanks can be built in accordance with working pressures designed to suit particular jobs. Tanks are usually built 125 psig working pressure, but tanks with working pressure from 0 to 500 psig can be provided.

Galvanizing CEMLINE tanks through 60″ diameter can be hot dip galvanized at customer request.

  • STANDARD FEATURES

    Sizing

    CEMLINE Steel Tanks are manufactured in a wide range of sizes. Tank diameter is the outside diameter and length refers to the overall tank length.

    Material

    CEMLINE tanks are normally constructed of pressure vessel quality carbon steel. Stainless Steel in grades 304 or 316 and 90:10 CuproNickel can be furnished. Consult factory for other materials.

    Exterior

    CEMLINE Steel Tanks are normally furnished with factory primed exterior. Special paints and coatings are available upon request.

    Paint Coatings

    CEMLINE tanks can be furnished with interior or exterior coatings to meet customer specifications.

    Construction

    CEMLINE Steel Tanks are manufactured in strict accordance with ASME code requirements and National Board Registration. Non-Code tanks are also available.

    Working Pressure

    CEMLINE Steel Tanks can be built in accordance with working pressures designed to suit particular jobs. Tanks are usually built 125 psig working pressure, but tanks with working pressure from 0 to 500 psig can be provided.

    Galvanizing

    CEMLINE tanks through 60″ diameter can be hot dip galvanized at customer request.

  • CONNECTIONS

    Threaded Openings
    Threaded Openings NPT threaded openings are furnished as required. Tanks are built with the location and size of the openings to suit customer requirements.

    Flanged Openings
    Flanged Openings Flanged openings are normally ANSI standard for 150#, 300#, 600#, and specially drilled flanges can be furnished.

    Groove-End Connections
    Groove-End Connections Groove- end connections are furnished as required. 6” and below are schedule 40 pipe, 8” and above are schedule 30 pipe.

  • Manhole

    CEMLINE Steel Tanks are provided with 12″ x 16″ elliptical manholes on 42″ diameter and larger as required by the ASME Code. Smaller tank diameters do not require a manhole, but a manhole or handhole can be provided if so specified. (Other manhole and handhole sizes are available and can be furnished upon request.)

  • Supports

    Saddles

    24” through 36” R1 = Tank radius (1/2 diameter) 42” through 96” R2 = Tank radius (1/2 diameter)

    Note: Normally two saddles are used on tanks up to 16’ length. Three saddles over 16’ tank length.

    Supports for Pipe Legs

    Most popular type of vertical support-Allows installer to level to fit floor by adjusting pipe nipples.

    Angle Legs

    Tanks can be furnished with three or four angle legs.

    Ring Base

    Normally used with air receivers-not recommended for water tanks as external corrosion can occur in ring.

    Note: Outside diameter of ring is 6” less than diameter of tank.
